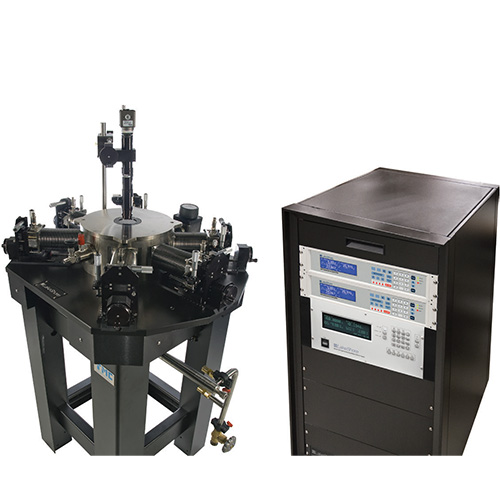

The CPX-VF probe station at Lake Shore has added a ± 2.5T superconducting magnet, which can perform C-V, I-V, microwave, and electro-optic detection, as well as out of plane vertical field superconducting magnetic measurements. Researchers can use CPX-VF for Hall effect measurement and testing of magnetic transport parameters. CPX-VF is one of the excellent probe stations in Lake Shore that combines microwave and magnetic field measurements.
CPX-VF achieves true 90 ° wafer probing on wafers with a diameter of up to 51mm (2 inches). The sample can maintain a high temperature during the cooling process, reducing the possibility of sample condensation, which is a key requirement for measuring organic materials.
CPX-VF uses liquid helium or liquid nitrogen for continuous flow refrigeration (liquid helium must be used when using superconducting magnets), with an operating temperature range of 4.2 K to 400 K. The low-temperature option can be used to extend the basic low-temperature to 2 K.
Lake Shore CRX-4K | High performance closed-loop probe testing system
|
Features / Applications
◆ Temperature range 4.5K~350K
◆ Optional high temperature up to 675K
◆Low temperature operation without liquid helium
◆ Minimize sample condensation as much as possible during cooling
◆ Standard 2-inch sample, 4-inch optional
|
 |
Specifications
Chuck stage
|
Model |
CRX-10K/CRX-4.5K |
|
Chuck size |
2 |
|
Vacuum |
3*10-5(Torr) |
|
View window |
2"/4"/6" |
|
Probe arm number |
6 upon request |
|
Cooling type |
Liquid nitrogen, liquid helium |
|
Temperature range |
10k to 350k (liquid nitrogen), 4.5k to 350k (liquid helium) |
|
Temperature accuracy |
1k / 0.1k / 0.01k upon request |
|
Stability |
± 1k / ± 0.1k/ ± 0.01k |
Optical system
|
Model |
Single tube microscope /stereo microscope /metalloscope |
|
Magnification |
16X-200X/20X-4000X |
|
Travel range |
X-Y up to 4"*4", vertical to 50.8mm |
|
Camera |
CCD Camera |
|
Illumination |
Coaxial and ring light |
Probe arm
|
X-Y-Z travel range |
25mm-70mm-15mm |
|
Resolution |
2μm |
|
Cable |
Coaxial/triaxial/RF cable |
|
Structure |
External arm, vacuum bellows |
|
Leakage current |
10pA/100fA/10fA upon request |
|
Frequency |
DC-67GHz |
|
Probe tip diameter |
10μm/20μm/50μm |
Optional accessories
|
Hot chuck |
|
RF testing accessoriess |
|
Shielding box |
|
Vibration free table |
|
High voltage test accessories |
|
Laser system |
Specifications and designs are subject to change without notice.
