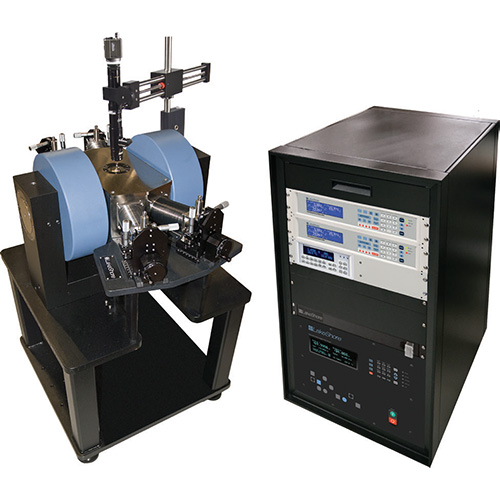

The EMPX-H2 probe station from Lake Shore has been equipped with an electromagnet that generates a ±0.6 T horizontal magnetic field. All standard C-V, I-V, microwave, and electro-optical measurements, along with in-plane horizontal field electromagnetic measurements, can be performed on the EMPX-H2 probe station. Researchers can utilize the EMPX-H2 to test magnetic transport parameters, ST-FMR measurements, and more. It serves as a cryogenic probe station for vector-related magnetic transport measurements in Lake Shore's probe station lineup.
To maximize the sample magnetic field, the EMPX-H2 probe is configured with a 30° tilt angle for probing wafers up to 25 mm (1 inch) in diameter. The optional 360° rotating sample stage enables measurements of angle-dependent and anisotropic magnetic transport properties. The EMPX-H2 operates within a temperature range of 4.5 K to 400 K, and the optional cryogenic module extends the base temperature to 3.2 K. EMPX-H2 employs continuous flow cooling, which can be achieved using liquid helium or liquid nitrogen.
Lake Shore CRX-4K | High performance closed-loop probe testing system
|
Features / Applications
◆ Temperature range 4.5K~350K
◆ Optional high temperature up to 675K
◆Low temperature operation without liquid helium
◆ Minimize sample condensation as much as possible during cooling
◆ Standard 2-inch sample, 4-inch optional
|
 |
Specifications
Chuck stage
|
Model |
CRX-10K/CRX-4.5K |
|
Chuck size |
2 |
|
Vacuum |
3*10-5(Torr) |
|
View window |
2"/4"/6" |
|
Probe arm number |
6 upon request |
|
Cooling type |
Liquid nitrogen, liquid helium |
|
Temperature range |
10k to 350k (liquid nitrogen), 4.5k to 350k (liquid helium) |
|
Temperature accuracy |
1k / 0.1k / 0.01k upon request |
|
Stability |
± 1k / ± 0.1k/ ± 0.01k |
Optical system
|
Model |
Single tube microscope /stereo microscope /metalloscope |
|
Magnification |
16X-200X/20X-4000X |
|
Travel range |
X-Y up to 4"*4", vertical to 50.8mm |
|
Camera |
CCD Camera |
|
Illumination |
Coaxial and ring light |
Probe arm
|
X-Y-Z travel range |
25mm-70mm-15mm |
|
Resolution |
2μm |
|
Cable |
Coaxial/triaxial/RF cable |
|
Structure |
External arm, vacuum bellows |
|
Leakage current |
10pA/100fA/10fA upon request |
|
Frequency |
DC-67GHz |
|
Probe tip diameter |
10μm/20μm/50μm |
Optional accessories
|
Hot chuck |
|
RF testing accessoriess |
|
Shielding box |
|
Vibration free table |
|
High voltage test accessories |
|
Laser system |
Specifications and designs are subject to change without notice.
