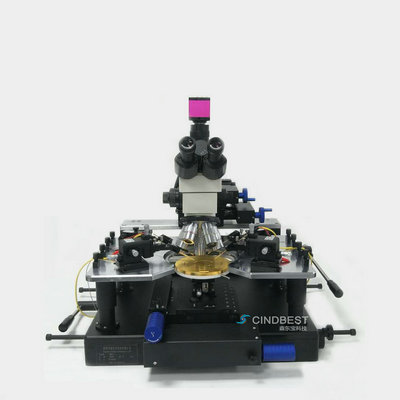

CL-6 middle-sized probe station
Modular design, precise screw drive structure, up to 8 inch wafer, upgradable for RF test, high current test and laser repair applications.
  • Parameter
  • Download


CL-4 | 4~8" middle-sized for basic I-V/C-V test



Features/ Aplications


For I-V/C-V, PIV, optoelectronic test


Up to 8 inch wafer


Precise screw drive structure, linear movement


Compatible with high magnification metalloscope, fine-tuning movement


Capable to be upgraded for RF test, high current test and laser repair applications


探针台,晶圆测试探针台



Specifications


Chuck Stage

Model

CL-4/CL-6/CL-8

Chuck size

4"/ 6" /8"

Rotation range

360° with angle locking, fine-tuning for 15° with 0.1° resolution

X-Y travel range

4"*4"/6"*6"/8"*8"

X-Y travel resolution

10μm/2μm/0.7μm/0.5μm

Z travel range

10mm

Sample mounting type

Vacuum

Chuck capacity

Up to 6 micropositioners

Electrical design

Electrical floating on chuck back, can be used as gate electrode

Dimension

400mmL*400mmW*600mmH/580mmL*480mmW*600mmH


Optical sytem

Microscope

Single tube microscope /stereo microscope / metalloscope

Magnification

16X-200X/20X-4000X

Travel range

X-Y up to 2"*2", vertical to 50.8mm

Camera

CCD Camera


Micropositioner

X-Y-Z travel range

12mm-12mm-12mm

Mounting mode

Magnetic/vacuum

Resolution

10μm/2μm/0.7μm/0.5μm upon request

Leakage current

10pA / 100fA

Cable adaptor

BNC/Banana head/Crocodile clip/Coaxial/Triaxial upon request

Probe tip diameter

0.2μm/1μm/2μm/5μm/10μm/20μm upon request

Probe metal

Tungsten/Beryllium copper upon request


Optional accessories

Hot chuck

Shielding box

Display screen

Gold plated Chuck

Special adapter

Vibration free table

RF test accessoriess


Notice:

Probe stations can be customized to customer requirements.

Specifications and designs are subject to change without notice.
