Mini size, modular design, for I-V/C-V, PIV test, optoelectronic test, up to 6 inch wafer,
applicable to glove box

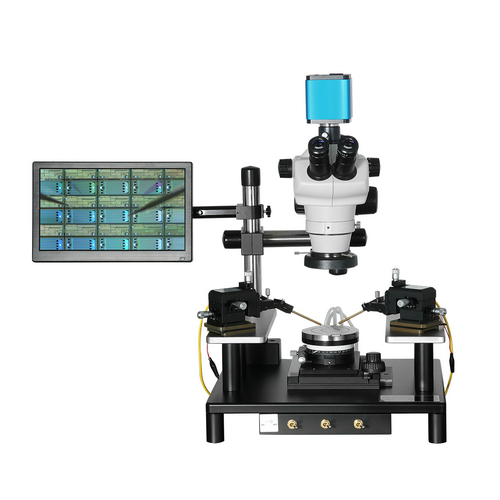

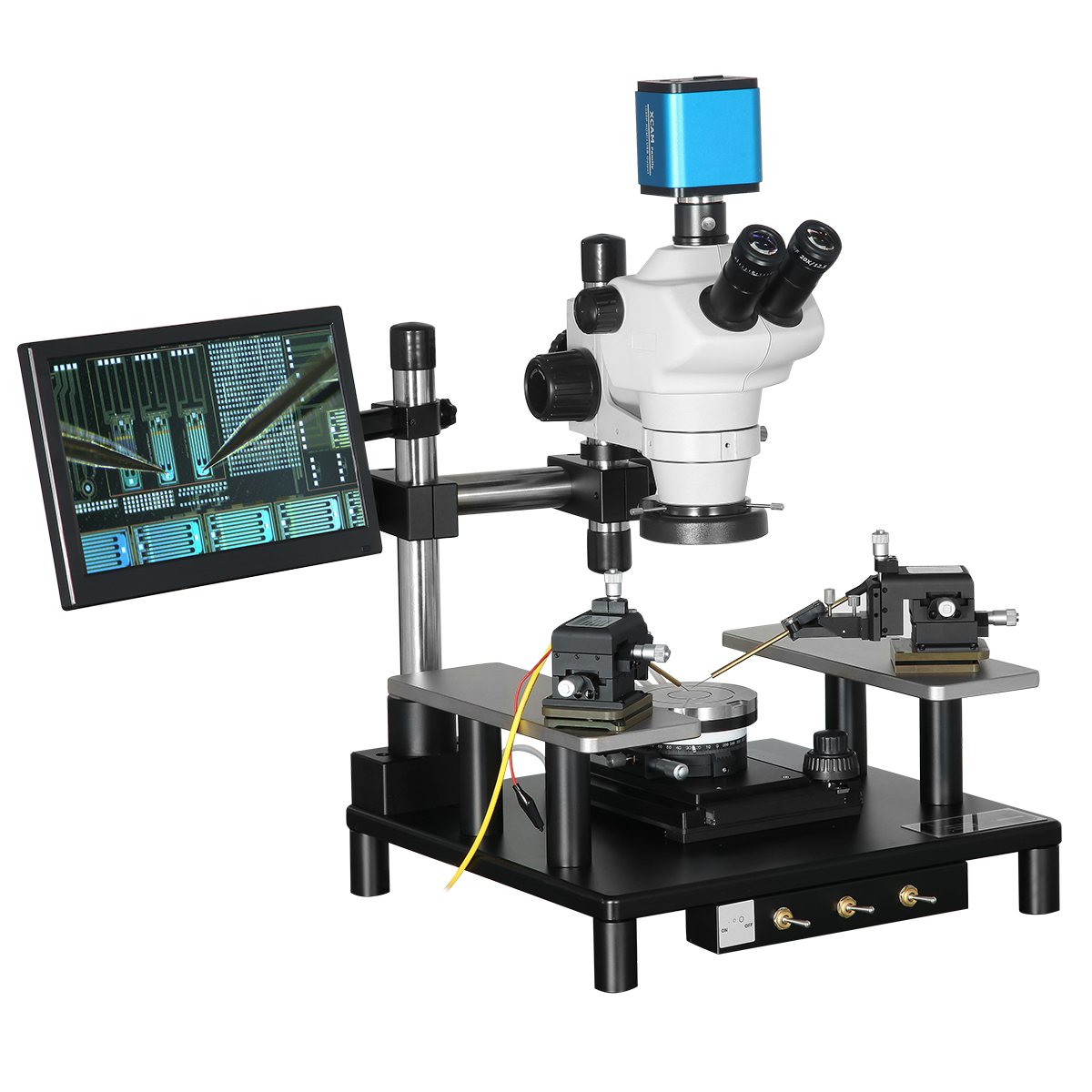

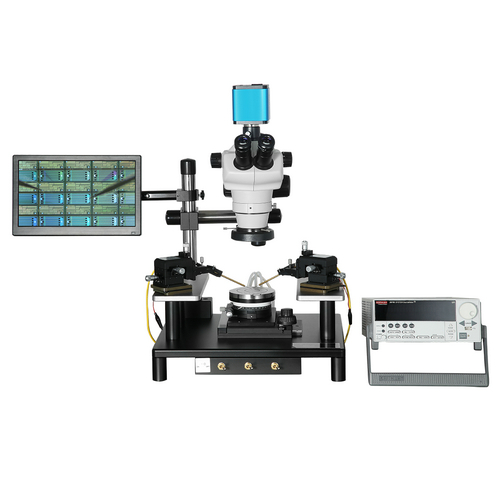

CM-4 | 4" mini probe station for basic I-V/C-V test
|
Features / Application
◆ For I-V/C-V, PIV test, optoelectronic test.
◆ Up to 6 inch wafer；
◆ Precise screw drive structure, linear movement；
◆ Modular design, light weight. |
|
Specifications
Chuck stage
|
Chuck size |
4"/ 6" |
|
Rotation range |
360° with angle locking , 0.1 μm resolution fine-tuning |
|
X-Y travel range |
2"*3" |
|
X-Y travel resolution |
10μm/2μm/0.7μm/0.5μm upon request |
|
Sample mounting type |
Vacuum |
|
Stage capacity |
Up to 6 micropositioners |
|
Dimension |
400mm(L)*380mm(W)*500mm(H） |
Optial system
Stereo microscope
16~200X
Travel range
360° horizontal rotation, vertical to 50.8mm
Illumination
Coaxial and ring light
CCD camera
HDMI interface, built-in XcamView
Micropositioner
|
Leakage current |
10pA /100fA |
|
Cable adaptor |
BNC/Banana head /Crocodile clip /Coaxial /Triaxial |
|
Probe tip diameter |
0.5μm/1μm/2μm/5μm/10μm/20μm upon request |
Specifications and designs are subject to change without notice.
