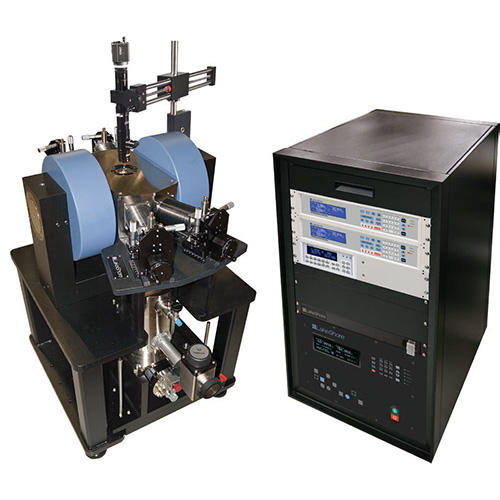

Lake Shore's CRX-EM-HF is a probe station without liquid helium closed cycle refrigeration, which adds an electromagnet with a ± 0.6 T horizontal magnetic field. All standard C-V, I-V, microwave, and electro-optical detections, as well as internal horizontal field electromagnetic measurements, can be performed on the CRX-EM-HF multifunctional probe station. Researchers can use CRX-EM-HF to test magnetic transport parameters, ST-FMR, etc. It is a liquid helium free low-temperature probe station among Lake Shore's numerous probe stations that can be used for vector correlation magnetic transport measurements. In order to maximize the magnetic field of the sample, the CRX-EM-HF probe is configured with a 30 ° tilt angle for detecting wafers with a diameter of up to 25mm (1 inch).
The CRX-EM-HF uses an independent closed-loop refrigeration unit that can cool to low temperatures without human assistance after startup. The 360 ° rotating sample stage option allows for the measurement of angle dependent and anisotropic magnetic transport properties.
Lake Shore CRX-EM-HF | Liquid Nitrogen Free Low Temperature Magnetic Field Probe Station
|
Features / Applications
◆ Temperature range 8K~400K
◆ Horizontal magnetic field ± 0.6T
◆Maximum 1 inch (25.4mm) sample
◆ Apply magnetic field without system cooling
◆ 360 ° rotation magnetic anisotropy test of sample
|
 |
Specifications
Chuck stage
|
Model |
CRX-10K/CRX-4.5K |
|
Chuck size |
2 |
|
Vacuum |
3*10-5(Torr) |
|
View window |
2"/4"/6" |
|
Probe arm number |
6 upon request |
|
Cooling type |
Liquid nitrogen, liquid helium |
|
Temperature range |
10k to 350k (liquid nitrogen), 4.5k to 350k (liquid helium) |
|
Temperature accuracy |
1k / 0.1k / 0.01k upon request |
|
Stability |
± 1k / ± 0.1k/ ± 0.01k |
Optical system
|
Model |
Single tube microscope /stereo microscope /metalloscope |
|
Magnification |
16X-200X/20X-4000X |
|
Travel range |
X-Y up to 4"*4", vertical to 50.8mm |
|
Camera |
CCD Camera |
|
Illumination |
Coaxial and ring light |
Probe arm
|
X-Y-Z travel range |
25mm-70mm-15mm |
|
Resolution |
2μm |
|
Cable |
Coaxial/triaxial/RF cable |
|
Structure |
External arm, vacuum bellows |
|
Leakage current |
10pA/100fA/10fA upon request |
|
Frequency |
DC-67GHz |
|
Probe tip diameter |
10μm/20μm/50μm |
Optional accessories
|
Hot chuck |
|
RF testing accessoriess |
|
Shielding box |
|
Vibration free table |
|
High voltage test accessories |
|
Laser system |
Specifications and designs are subject to change without notice.
