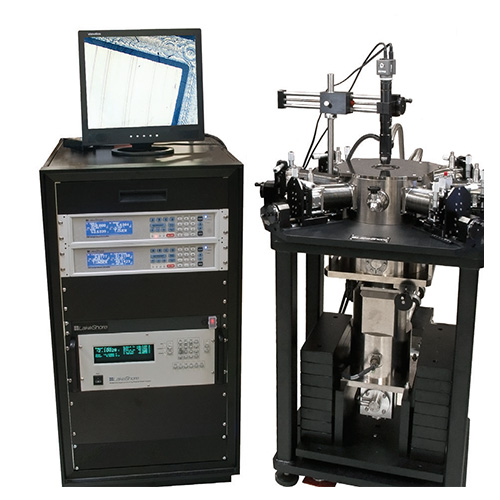

Lake Shore's CRX-VF is a probe station without liquid helium closed-loop refrigeration, which adds a ± 2.5T superconducting magnet and can perform C-V, I-V, microwave, and electro-optic detection, as well as out of plane vertical field superconducting magnetic measurements. Researchers can use CRX-VF for Hall effect measurement and testing of magnetic transport parameters. CRX-VF can achieve true 90 ° wafer probing on wafers with a diameter of up to 51 millimeters (2 inches). The sample can maintain a high temperature during the cooling process, reducing the possibility of sample condensation, which is a key requirement for measuring organic materials.
CRX-VF can operate within a temperature range of 10 K to 500 K, using an independent closed-loop refrigeration system that can cool to low temperatures without human assistance after startup. This system provides a complete solution for users seeking to balance the convenience of operating without liquid helium and the reliable measurement performance of Lake Shore products.
Lake Shore CRX-EM-HF | Liquid Nitrogen Free Low Temperature Magnetic Field Probe Station
|
Features / Applications
◆ Temperature range 8K~400K
◆ Horizontal magnetic field ± 0.6T
◆Maximum 1 inch (25.4mm) sample
◆ Apply magnetic field without system cooling
◆ 360 ° rotation magnetic anisotropy test of sample
|
 |
Specifications
Chuck stage
|
Model |
CRX-10K/CRX-4.5K |
|
Chuck size |
2 |
|
Vacuum |
3*10-5(Torr) |
|
View window |
2"/4"/6" |
|
Probe arm number |
6 upon request |
|
Cooling type |
Liquid nitrogen, liquid helium |
|
Temperature range |
10k to 350k (liquid nitrogen), 4.5k to 350k (liquid helium) |
|
Temperature accuracy |
1k / 0.1k / 0.01k upon request |
|
Stability |
± 1k / ± 0.1k/ ± 0.01k |
Optical system
|
Model |
Single tube microscope /stereo microscope /metalloscope |
|
Magnification |
16X-200X/20X-4000X |
|
Travel range |
X-Y up to 4"*4", vertical to 50.8mm |
|
Camera |
CCD Camera |
|
Illumination |
Coaxial and ring light |
Probe arm
|
X-Y-Z travel range |
25mm-70mm-15mm |
|
Resolution |
2μm |
|
Cable |
Coaxial/triaxial/RF cable |
|
Structure |
External arm, vacuum bellows |
|
Leakage current |
10pA/100fA/10fA upon request |
|
Frequency |
DC-67GHz |
|
Probe tip diameter |
10μm/20μm/50μm |
Optional accessories
|
Hot chuck |
|
RF testing accessoriess |
|
Shielding box |
|
Vibration free table |
|
High voltage test accessories |
|
Laser system |
Specifications and designs are subject to change without notice.
