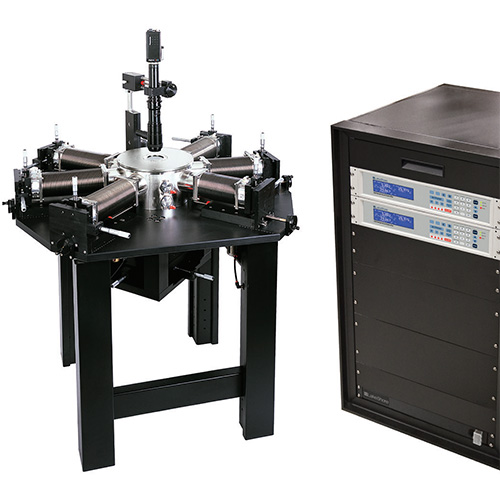

The FWPX probe station from Lake Shore is specifically designed for researchers requiring large wafer probing, capable of accommodating wafers up to 102 mm (4 inches) in diameter and customizable to handle larger sizes up to 152 mm (6 inches). This versatile probe station is primarily engineered for characterizing material properties of large samples by researchers and engineers, while also effectively measuring organic materials.
The FWPX probe station employs a continuous-flow cooling system, utilizing liquid helium or nitrogen to cool wafers or samples. Its standard operating range is 4.5K to 475K, and with low-temperature options, the base cooling capability can be extended down to 3.5K.
The FWPX probe station is capable of performing standard measurements such as I-V, C-V, and microwave tests.
The FWPX probe station can accommodate up to six micro-manipulator probe arms with heat sinks simultaneously, and after optimized design, it is suitable for electro-optical testing

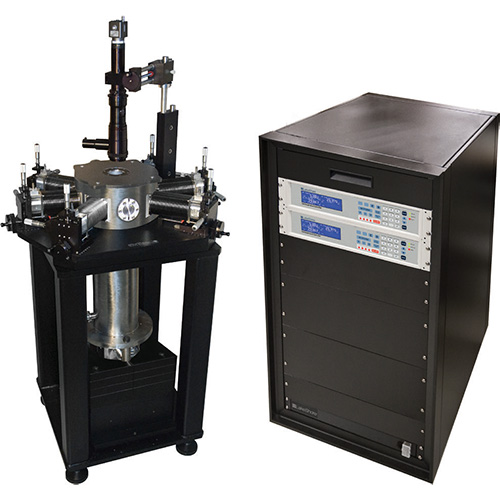

Lake Shore CRX-4K | High performance closed-loop probe testing system
|
Features / Applications
◆ Temperature range 4.5K~350K
◆ Optional high temperature up to 675K
◆Low temperature operation without liquid helium
◆ Minimize sample condensation as much as possible during cooling
◆ Standard 2-inch sample, 4-inch optional
|
 |
Specifications
Chuck stage
|
Model |
CRX-10K/CRX-4.5K |
|
Chuck size |
2 |
|
Vacuum |
3*10-5(Torr) |
|
View window |
2"/4"/6" |
|
Probe arm number |
6 upon request |
|
Cooling type |
Liquid nitrogen, liquid helium |
|
Temperature range |
10k to 350k (liquid nitrogen), 4.5k to 350k (liquid helium) |
|
Temperature accuracy |
1k / 0.1k / 0.01k upon request |
|
Stability |
± 1k / ± 0.1k/ ± 0.01k |
Optical system
|
Model |
Single tube microscope /stereo microscope /metalloscope |
|
Magnification |
16X-200X/20X-4000X |
|
Travel range |
X-Y up to 4"*4", vertical to 50.8mm |
|
Camera |
CCD Camera |
|
Illumination |
Coaxial and ring light |
Probe arm
|
X-Y-Z travel range |
25mm-70mm-15mm |
|
Resolution |
2μm |
|
Cable |
Coaxial/triaxial/RF cable |
|
Structure |
External arm, vacuum bellows |
|
Leakage current |
10pA/100fA/10fA upon request |
|
Frequency |
DC-67GHz |
|
Probe tip diameter |
10μm/20μm/50μm |
Optional accessories
|
Hot chuck |
|
RF testing accessoriess |
|
Shielding box |
|
Vibration free table |
|
High voltage test accessories |
|
Laser system |
Specifications and designs are subject to change without notice.
